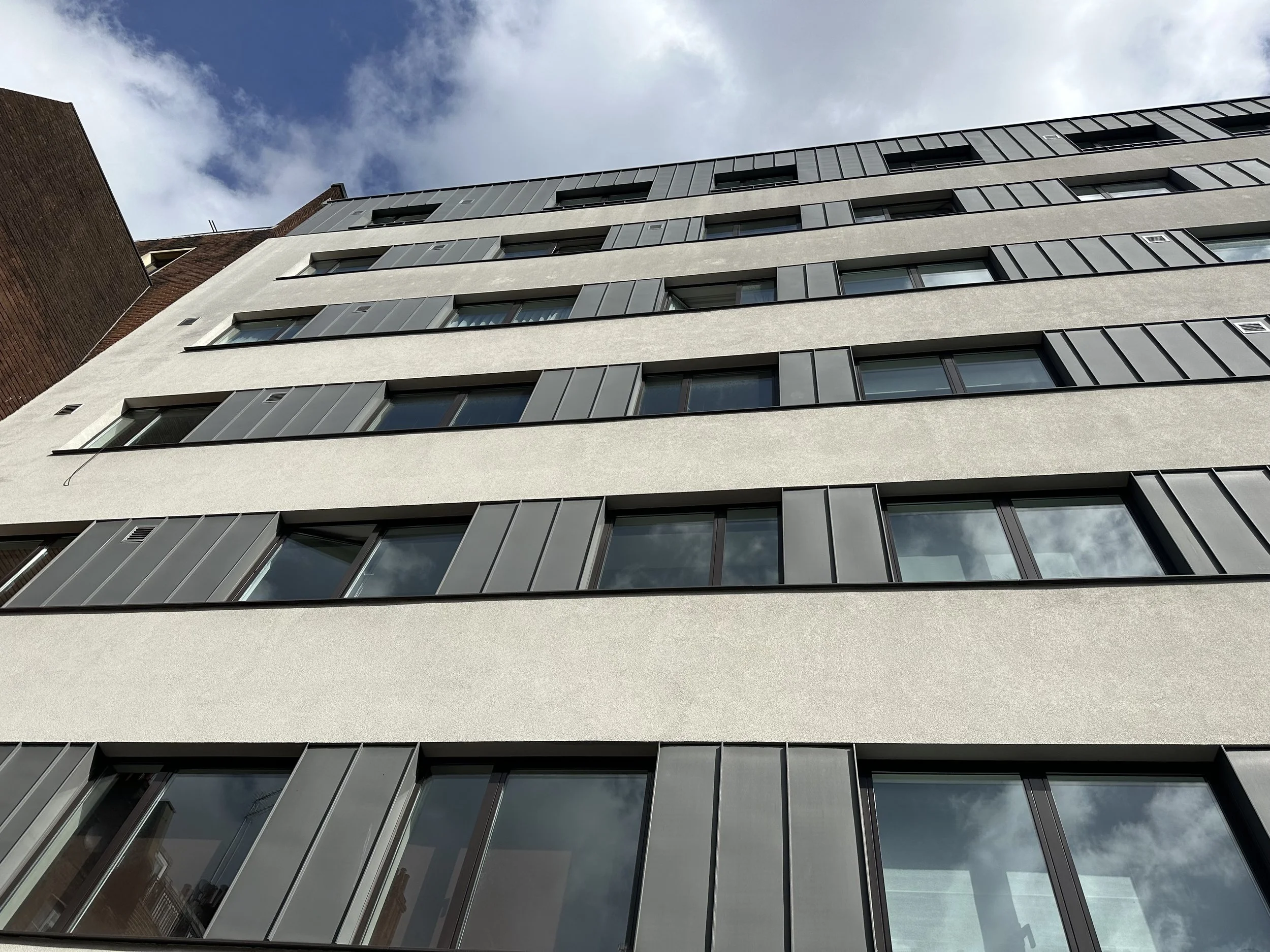

facade of 95 99 Baker Street Building. A residential development of seven storeys

95-99 Baker Street

Location: London, UK

Sector: Cladding Remediation / Residential
Client: Archway Investments

The property is a residential development of seven storeys comprising apartment units and commercial units at the ground level. The top floor (sixth level) has a roof terrace stretching across the entire floor plate of the block. The property is located on Baker Street with front elevation facing east. The main access is via the front door on the ground level overlooking Baker Street. The property is over 18 meters in height and considered to be a relevant building. The height of the property is measured at approximately 19.33 meters from ground to the finished floor of the top occupied level. The building was converted from an office block to residential circa 2010.

There are five main types of external wall finishes from the ground to the fifth level, including:

  • Standing seam zinc cladding – located on the sixth‐floor roof terrace

  • Reconstituted stone panel–located to the front of the property

  • Zinc spandrel panel – located to windows on the front and rear elevations of the property

  • Render – located to the rear of the property

  • Brickwork–located on the east elevation by the front entrance

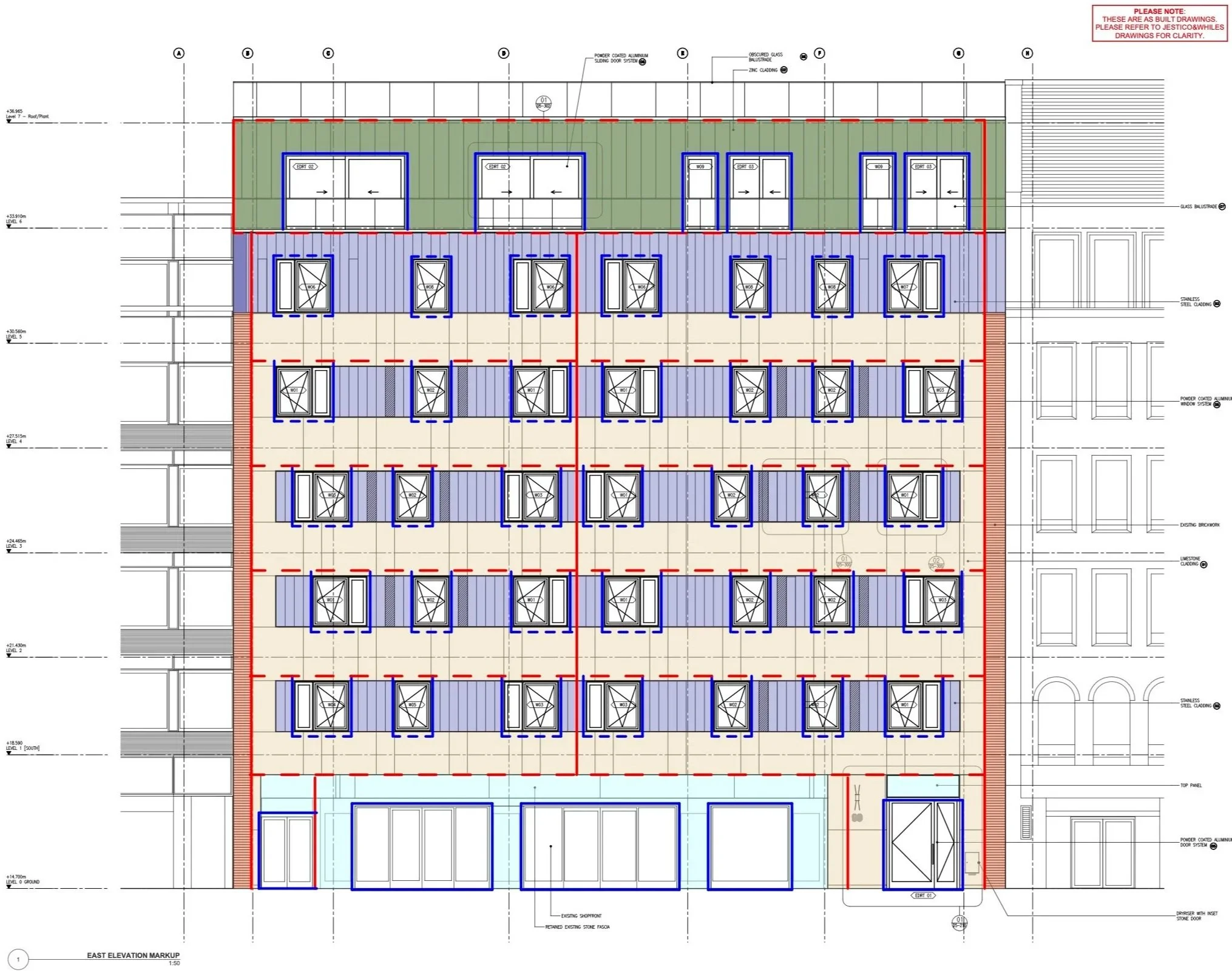

Architectural drawing showing the east elevation of a building with windows, doors, and detailed construction notes.

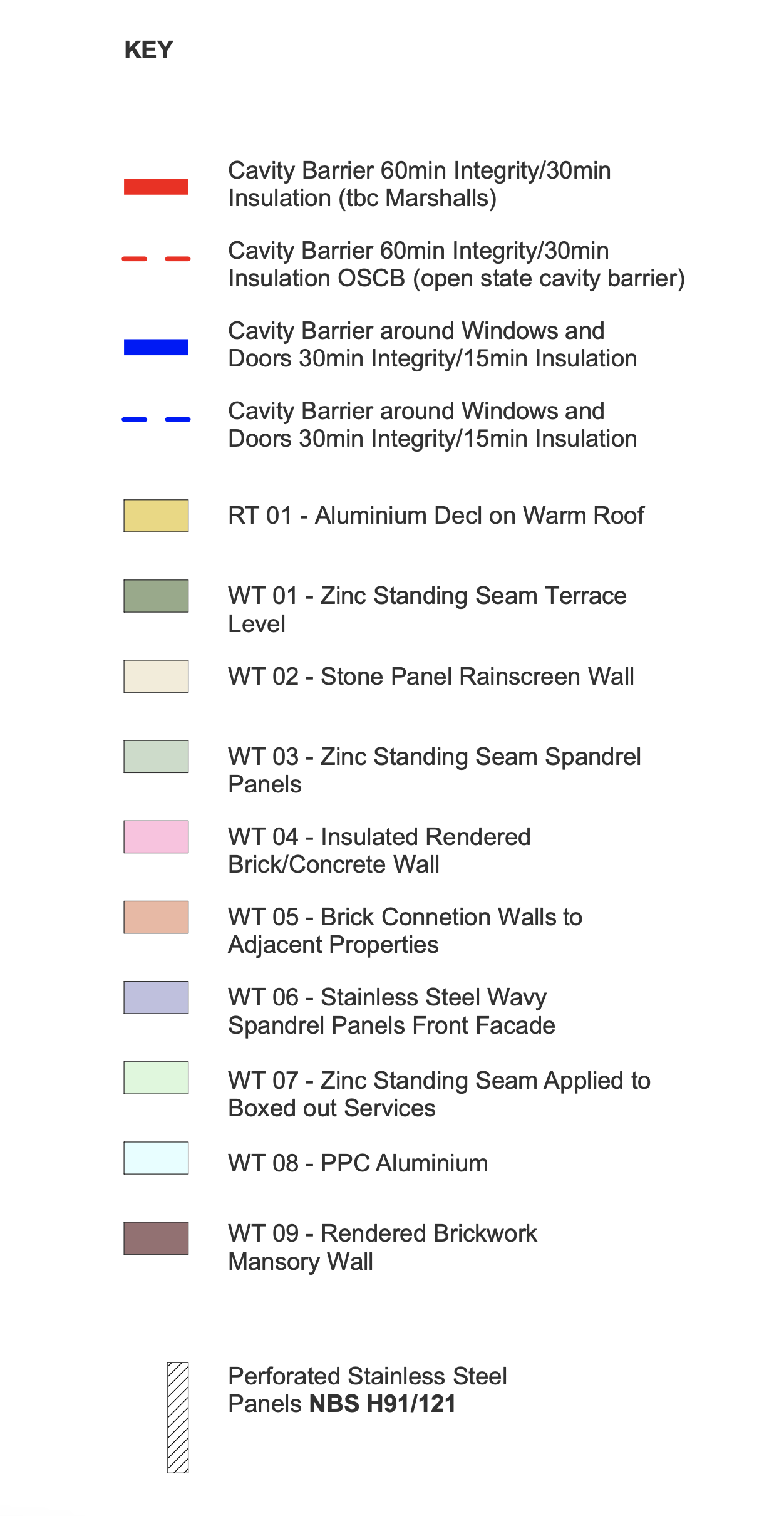

Legend indicating symbols for building components such as cavity barriers, thermal insulation, wall panels, roof decking, and steel panels, with different colors and line styles representing specific materials and installation details.

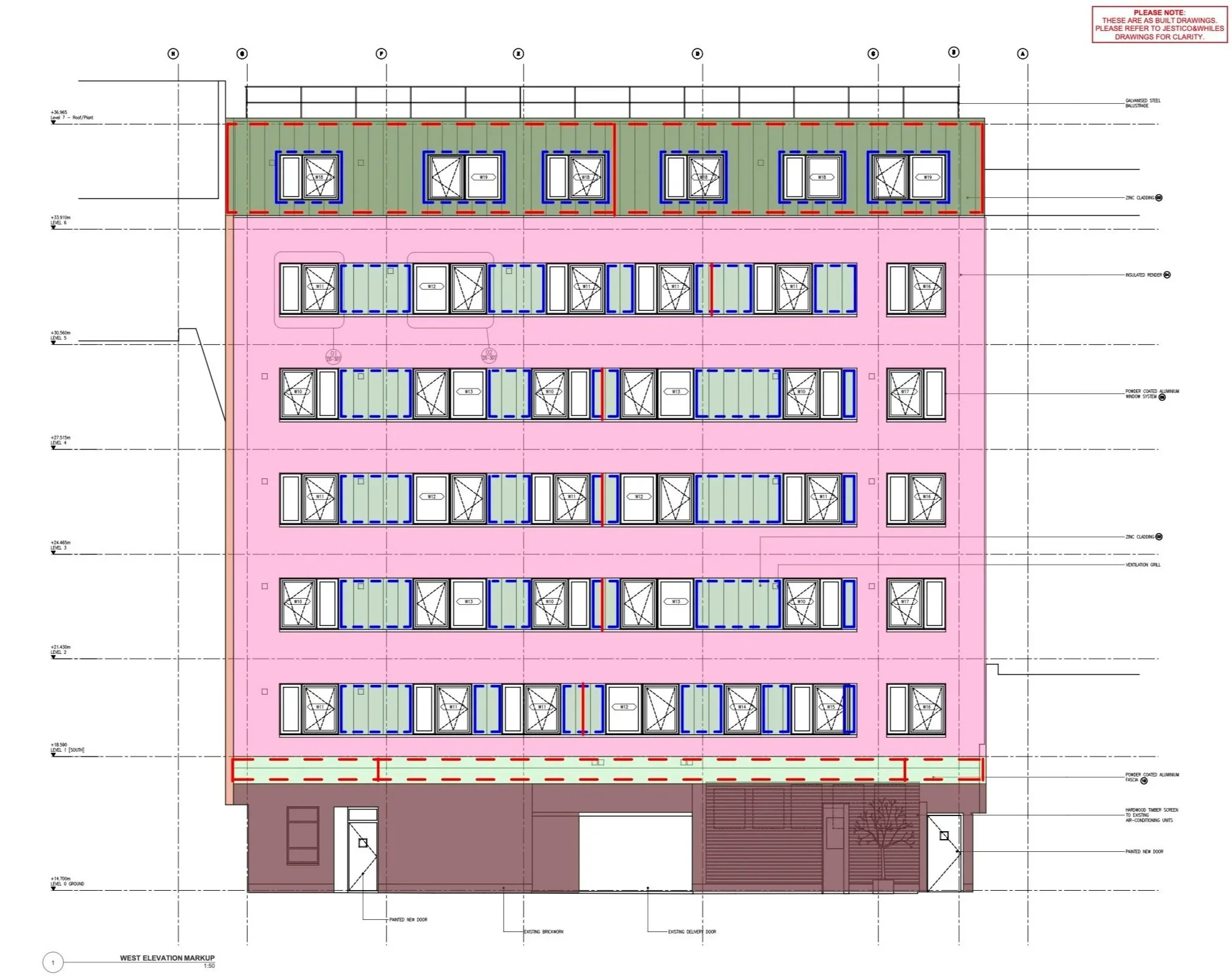

Architectural drawing of a multi-story building's west elevation, showing windows, doors, and building materials with color-coded sections.
Architectural technical drawings and elevation views of a window with detailed construction annotations.
The image shows a modern multi-story building with large windows and a mix of white and black panels, viewed from the ground looking up at an angle against a cloudy sky.
